Mapbender Quickstart: First steps with Mapbender

Mapbender is a web based geoportal framework to publish, register, view, navigate, monitor and grant secure access to spatial data infrastructure services. Management interfaces empower administrators who need to maintain and categorize map and feature services and grant access to individuals, groups and other services. Mapbender is written from the ground up using modern web technologies. The foundation is laid by Symfony. On the client-side expect to find OpenLayers.

With this code base, we will continue the Mapbender idea of being a Geoportal framework. Key features of Mapbender are:

  • Applications can be setup, configured and styled right from within the browser.

  • Services (e.g. WMS) can be managed inside a service repository and linked to applications.

  • Rights management are easy to maintain, for individual users and groups, whether you store them inside the database or in an LDAP.

  • Search modules can be configured.

  • Applications for digitalization can be setup.

  • Mobile template can be used to provide applications for smartphones and tablets.

You will need nothing but a web browser for this quickstart.

This quickstart describes how to:

  1. Start Mapbender

  2. Create an application

  3. Insert elementes into an individual application

  4. Configure sources

  5. Manage users and groups

  6. Use the rights management

  7. Start an application at a defined position

This is how a Mapbender application can look like:

../_images/mapbender_basic_application1.png

Installation

This quickstart explains the basics of Mapbender and serves as a quick introduction after your first successful installation. For the installation of Mapbender have a look at Installation.

1. Start Mapbender

  1. Choose Mapbender from the start menu (if a shortcut was already created) or visit http://localhost/mapbender/app.php (this address can be slightly different depending on how the Apache Alias was created in the file /etc/apache2/sites-available/mapbender.conf, more information at Installation).

  2. The application should then appear in your browser window.

If you have any difficulties running Mapbender, please check whether your Apache web server and your PostgreSQL database are running without errors.

Start Mapbender in developer mode

Symfony offers a developer mode with lots of information about your application (logging, exceptions, database queries, memory usage, time and more). This mode is only available from localhost.

Mapbender Backend

  1. After a successful Mapbender startup, the application overview page in the backend will appear. The applications are listed with a screenshot, title, URL title and description.

  2. You can open an application by click on the title, the screenshot or via the mapbender-button-show button.

  3. A log-in is required to gain access into Mapbender’s administration backend. In order to do so, click on login at the top-right of the login page. You can login with the user that was generated during installation. This could be root with the password root - this is the default user and password that you get after installation of Mapbender. Please change the root password if you want to run a productive environment. Please don’t delete the user root.

After a successful login you will be directed to the Mapbender administration backend.

Application overview

The application overview site displays a list of all available applications. The root user has access to the following functions:

  • title, URL title and description

  • preview screenshot for the application (if provided)

  • filter textfield for application search

  • option to create new applications

  • mapbender-button-show link to the application

  • mapbender-button-copy button to duplicate the application

  • mapbender-button-export button to export the application

  • mapbender-button-edit button to edit the application

  • mapbender-button-publish button to publish/unpublish the application

  • mapbender-button-delete button to delete the application

../_images/mapbender_app_dev1.png

2. Create an individual application

There are three different options to create an application:

An application can be created out of an already existing one. This can be done via a click on the mapbender-button-copy button in the application overview. The application will receive the same title and URL title with the appendix “imp”. All previously defined elements and configurations will be transferred as well. Another possibility is the import of an application. Further information can be found on the following page: yaml_de:yaml-application-files.

Furthermore, new applications can be created from scratch. The required steps are explained in the following:

  1. Select the option “New Application” in the application overview.

  2. After that, select a template in order to define the layout of your application. The options are: Fullscreen, Fullscreen alternative, Mapbender Mobile template. It is also possible to define your own template and assign it to a new application.

Tip

Please note that the style-, icon- and layout-configurations are set up via css- and twig-files. Read more about template generation at How to create your own Template?.

  1. Define a title, URL title and a description (optional). Title and URL title can be identical. However, the URL title has to follow the usual URL syntax.

  2. A thumbnail can be uploaded as well. It will appear next to the application title on the application overview page. For this, select “Select File” below the thumbnail section.

  3. Under the section Map engine, choose your preferred OpenLayers version to manage the application’s map.

  4. Set a tick at “persistent map state”, to make certain map parameters and configurations persistent. Further information can be found on the following site: share.

  5. Click “save” to save and create your application. It is now possible to add elements (e.g. map, navigation bar, legend) and services to your applicaiton.

Applications can be re-edited at any point. In order to do so, navigate to the application overview. Here, you can click on a mapbender-button-edit Button for every application with corresponding editing rights. Furthermore, applications can be viewed in the Frontend via a mapbender-button-show Button. They can also be exported (mapbender-button-export), deleted (mapbender-button-delete) or made visible/invisible to not logged-in users (mapbender-button-publish).

../_images/mapbender_create_application1.png

3. Add elements to your application

Mapbender consists of a toolbar, sidepane, content and footer. A variety of different elements can be added into these areas.

  1. Choose Applications --> mapbender-button-edit Button --> Layouts.

  2. Click on the mapbender-button-add Button to get an overview over the elements Mapbender provides in the corresponding area.

  3. Choose an element from the list. Notice that you have different areas in your application. Make sure to add the element to a region that makes sense. Elements can not be added to all regions. For instance, the overview map is not integrable into the content.

  4. Configure the element. Notice: When you select an element, for example map, you see that the element has a set of attributes. Each element offers individual attributes for configuration.

  5. You can change the position of an element via drag & drop within and between regions.

  6. Have a look at your application. To open your application, click on the mapbender-button-show Button.

Now you should have an idea about how easy it is to change a Mapbender application.

../_images/mapbender_application_add_element1.png

In the following, you find a complete list of all elements and their functionalities. For a more detailed description, please have a look at the corresponding chapters in the mapbender documentation.

  • About dialog: Shows information about Mapbender in an about dialog

  • Activity indicator: Shows HTTP activity

  • Application switcher: Switches to another application while maintaining the current map position

  • Base source switcher: Changes the map’s background sources

  • Button: Integrate another element as a button

  • Coordinates display: Shows the map coordinates of your mouse position

  • Coordinates utility: Transforms coordinates to different SRS and navigates to them on the map

  • Copyright: Shows terms of use

  • Data manager: Create and manage non-spatial data

  • Digitizer: Create and manage spatial data

  • Dimensions handler: Manage sources with a time dimension

  • FeatureInfo: Gives information about sources

  • GPS Position: Renders a button to show the GPS position

  • HTML: Offers free definition of HTML to integrate pictures, texts or links

  • Image export: Exports the current map view (format options: png or jpeg)

  • Layer tree: Gives an overview of map layersets and layers

  • Legend: Displays legend of active themes on the map

  • Line/Area Ruler: Enables to measure a line/area and display its length/area in a dialog

  • Link: Links to an external URL

  • Map: Creates the map element in which layersets and layers are integrated into

  • Navigation toolbar: Provides a floating control to pan and zoom in the map

  • Overview: Provides an overview map (only available in Content section)

  • POI: Creates a POI for sharing

  • Print client: Renders a Print dialog

  • SRS selector: Changes the map’s spatial reference system

  • Scale bar: Displays a small line indicator representing the current map scale

  • Scale display: Displays the current map scale

  • Scale selector: Displays and changes a map scale

  • Search router: Enables a configurable search via SQL

  • Share URL: Shares the current map view via URL

  • Simple Search: Enables a configurable search on JSON sources (e.g. Solr)

  • Sketches: Enables a drawing tool with different shapes

  • View manager: Saves map states for later restoration

  • WMS loader: Loads a WMS via a getCapabilities-Request

Try it yourself

  • add a Map Element to the content of your application

  • add a Layertree to the content of your application

  • add a button that opens the Layertree to the top of your application

  • add the Navigation Toolbar to the content

  • add a Copyright and change the copyright text

  • add an SRS Selector to the footer

4. Configure Sources

Mapbender can handle sources of the type OGC WMS or OGC WMTS / TMS. Via a click on Sources, one can navigate to an overview of all uploaded sources. There is a second list called “Shared instances” which only provides sources of the type shared. Further information about bound and shared instances can be found here: _layerset:.

The sources pages provides a user with the following functions:

  • mapbender-button-add add data source

  • mapbender-button-show show data source

  • mapbender-button-update update data source

  • mapbender-button-delete delete data source

  • filter via text to search for sources

../_images/mapbender_sources1.png

Load sources

Mapbender allows the integration of OGC Web Map Services (WMS) and Web Map Tile Services (WMTS). The versions 1.0.0 and 1.3.0. are supported. A source provides a XML, when the getCapabilities document is requested. This information is read by Mapbender. The client receives all necessary information about a source via this XML.

Tip

You should check your capabilties document in your browser before uploading the service.

  1. To upload a source, click on Add source.

  2. Define the “Type” of the source: OGC WMS oder OGC WMTS / TMS.

  3. Provide the link to the getCapabilities URL in the field “Service-URL”.

  4. Define username and password in case your source requires it.

  5. Click on “load” to upload the service in the repository.

  6. After a successful upload, Mapbender will provide an overview of the WMS information.

../_images/mapbender_add_source.png

Add sources to an application

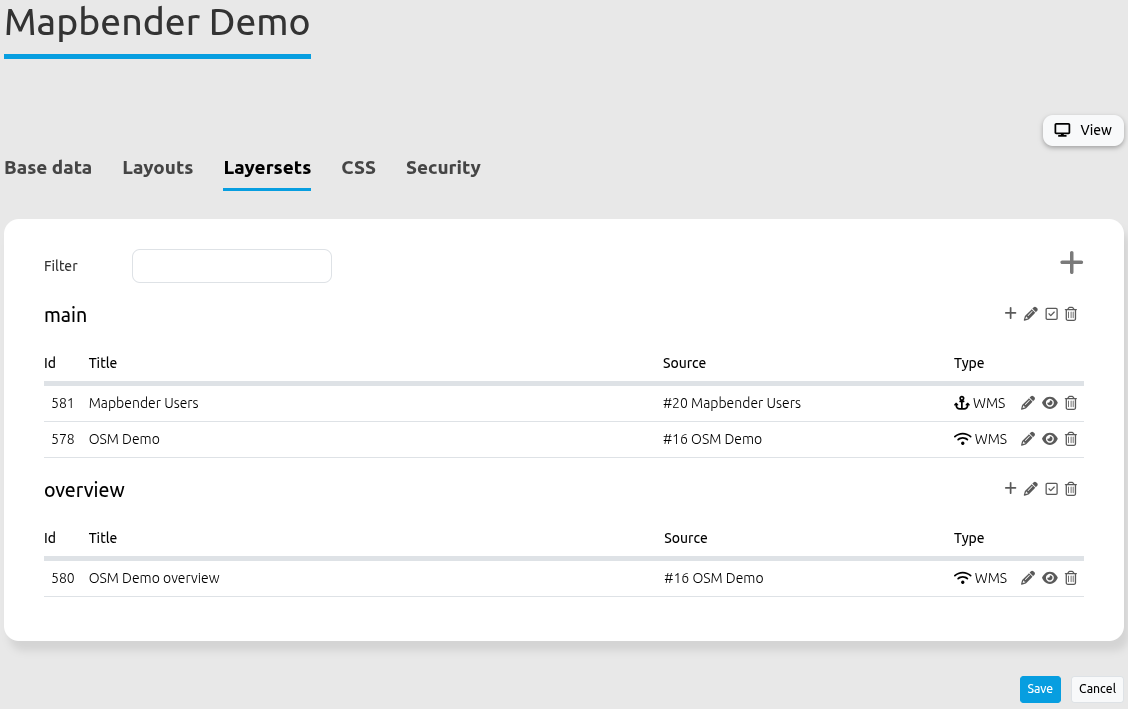

After uploading a service, it can be integrated into one or several application(s).

  1. Navigate to your application overview page. Click on the mapbender-button-edit Button of the desired application and navigate to the tab Layersets.

  2. In the section layersets you can integrate uploaded sources into your application. Click on mapbender-button-add Button next to the filter function to create a layerset. All layers have to be assigned to one layerset. Provide a name for it (e.g. “main” for the main map and “overview” for the overview map).

  3. Now you can add layers to the layerset. Click on the mapbender-button-add Button next to the desired layerset.

  4. The order of the layers can be changed via drag & drop.

../_images/mapbender_add_source_to_application1.png

Source configuration

Sources can be individually configured. This can be useful if you, for instance, don’t want to display all layers, change the order or titles of the layers, prevent a layer’s feature info output or adjust the scale in which the layers are visible.

  1. Click on Application --> mapbender-button-edit Button --> Layersets --> mapbender-button-edit Edit instance to configurate an instance.

  2. You can now change the instance configuration.

  3. The order of the layers can also be changed via drag & drop.

../_images/mapbender_source_configuration1.png

Source configuration:

  • Title: Name of the application

  • Opacity: Opacity in percentage

  • Format: Format of the getMap-Requests

  • Infoformat: Format of the getFeatureInfo-Requests (text/html für die Ausgabe als HTML wird empfohlen)

  • Exceptionformat: Format for error messages

  • Tile buffer: This parameter is valid for tiles services and specifies if additional tiles should be requested. If the user pans the map, these tiles are already downloaded and visible. The higher the value the more tiles are requested (default: 0).

  • BBOX Factor: This parameter is valid for non-tiled WMS services. You can specify the size of the returned map-image. A value greater than 1 will request a bigger map-image (default: 1.25).

  • BaseSource: Should the service be handled as BaseSource (BaseSources can be shown/hidden in the layertree)

  • Proxy: If active, the service will be requested by Mapbender and not directly

  • Transparency: default is active, the source is without a transparent background if it is deactivated (getMap-Request with Transparent=FALSE)

  • Tiled: you can request a WMS in tiles, default is not tiled (may be a good choice if your map is very big and the WMS service does not support the width/height)

  • Layer ordering: Handles the order of the layers in the service. Can be set toStandard (reversed) and QGIS (same order).

Dimensions:

This function is relevant for sources with a time dimension. Further information can be found on the following page: Dimensions Handler.

Vendor Specific Parameter:

You can define Vendor Specific Parameters in a layerset instance to add them to a WMS request. This principle follows Multi-Dimensions in the WMS specification.

You can use Vendor Specific Parameters in Mapbender for example to add the user- and group information of the logged-in user to a WMS request. You can also add hard coded values.

The following example shows the definition of the parameter “group”, which transfers the group-value of the logged-in user.

../_images/mapbender_vendor_specific_parameter3.png
  • Vstype: Mapbender specific variables. Group (groups), User (users), Simple

  • Name: Parameter name of the WMS request

  • Default: Default value

  • Hidden: If this value is set, requests are send via a server so that the parameters are not directly visible

Currently, the element can be used to transfer user- and group information, e.g. for a user the $id$ and for groups the value $group$.

Layer configuration:

  • title: layer title

  • min./max. scale: scale scope

  • active on/off: activates/deactivates a layer completely

  • select allow: layer is active when the application starts

  • select on: selectable in geodata explorer

  • info allow: layer info is active when the application starts

  • info on: layer provides feature info requests, info default activates the feature info functionality

  • toggle allowed: allows opening of folder at application start

  • toggle on: open folder on start of the application

  • layer ordering: allows to order layer according to the Standard or QGIS configuration.

  • more information (…): opens a dialog with detailed layer information:

  • ID: ID of the layer

  • Name: layer name of the service information (for getMap-Requests)

  • Style: if a WMS provides more than one style you can choose a different style than the default style.

Try it yourself

  1. Load a source into Mapbender.

  2. Add a source to your application.

  3. Change the configuration of your source.

Here is an example source:

5. User and group management

Access to Mapbender requires authentication. Only public applications can be used by everyone.

A user can get permissions to access one or a set of applications and services.

Create a user

  1. To create a user, go to Security --> Users --> Add new user.

  2. Choose a name for your user.

  3. Provide an email address for the user.

  4. Choose a password for your user and repeat it in the Confirm password field.

  5. Save your new user. It is still possible to alter user information later on.

../_images/mapbender_create_user1.png

You can provide more information about the user in the tab Profile. In the Groups and Security tabs it is possible to assign the user additional parameters, e.g. the membership to a group.

../_images/mapbender_assign_user_to_group1.png

Create a group

  1. Create a group by Security --> Groups --> Add new Group.

  2. Define a name and a description for your group.

  3. In the tab Users, assign users to your group.

  4. Save your new group.

6. Rights management

Mapbender provides different rights. They refer to the Symfony ACL System.

  • view: Whether someone is allowed to view the object.

  • edit: Whether someone is allowed to make changes to the object.

  • delete: Whether someone is allowed to delete the object.

  • operator: Whether someone is allowed to perform all of the above actions.

  • master: Whether someone is allowed to perform all of the above actions and in addition is allowed to grant any of the above permissions to others.

  • owner: Whether someone owns the object. An owner can perform any of the above actions and grant master and owner permissions.

Assign roles to a user by Security --> Users --> Edit your User --> Security.

../_images/mapbender_roles3.png

Assign an Application to a User/Group

  1. Edit your application via Application --> `` |mapbender-button-edit| ``Edit-Button.

  2. Choose Security

  3. Publish your application by Security --> public access. Alternatively, one can use the mapbender-button-publish Button. If this option is activated, also anonymous users will gain access to the application.

  4. Set permissions for specific users/groups.

../_images/mapbender_security1.png

Test your configuration. Logout from Mapbender by Logout. Login again as the new user.

Assign elements to a User/Group

Per default, all elements are accessible to users/groups if they have access to that particular application. This can be modified for each element.

  1. Edit your application by Application --> `` |mapbender-button-edit| ``Button .

  2. Choose Layouts

  3. Every element has a mapbender-button-key Acl-Button.

  4. Choose the mapbender-button-key Acl-button from the element that should be only available for special users/groups.

  5. Assign one or more users or groups to the element. Then, set permissions like view, edit, delete, operator, master, owner

  6. Test your configuration.

7. Start Application at a defined position

You can open an application at a defined location. This can be done by a POI. You also can add texts in the request.

You can pass one or more POIs in the URL. Each POI has the following parameters:

  • point: coordinate pair with values separated by comma (mandatory)

  • label: Label to display (optional)

  • scale: Scale to show POI in (optional, makes only sense with one POI)

If you pass more than one POI, the map will zoom to 150% of the POIs bounding.

To pass a single POI, use the following URL format:

  • ?poi[point]=363374,5621936&poi[label]=Hello World&poi[scale]=5000

What’s next?

This is only the first step on the road to using Mapbender. There is a lot more functionality you can try.

Mapbender Website: https://mapbender.org/

You find tutorials at: https://doc.mapbender.org

Get involved in the project: https://mapbender.org/en/community/
